pyINSPECTA demo

from __future__ import annotations

import matplotlib as mpl
import matplotlib.pyplot as plt

mpl.rcParams["figure.dpi"] = 150

from sdhdf import SDHDF
from sdhdf.logger import logger

logger.setLevel("INFO")

Let’s load an SDHDF file - it is represented by an SDHDF class instance:

# SDHDF v1.9.3 (NOTE: This file has a single integration only)
### Required to load local data for example - not needed for normal use
from importlib import resources

with resources.as_file(resources.files("sdhdf.data.tests")) as test_data:
    fname = "sdhdf_v1.9.3.hdf"
    file_path = test_data / fname

sdhdf = SDHDF(file_path, parallel=True)

sdhdf - INFO: Dask dashboard at: http://127.0.0.1:8787/status
sdhdf - INFO: SDHDF version: 2.0
sdhdf - WARNING: Path '/beam_0/metadata/cal_band_params' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/astronomy_data/data_weights' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/astronomy_data/data_flags' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/calibrator_data/cal32_data' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/calibrator_data/cal_data_on' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/calibrator_data/cal_data_off' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/calibrator_data/cal_data_weights' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/calibrator_data/cal_data_flags' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/calibrator_data/cal_frequency' not found in file
sdhdf - WARNING: Path '/beam_0/band_SB0/metadata/cal_obs_params' not found in file
sdhdf - WARNING: Path '/config/cal_backend_config' not found in file
sdhdf - WARNING: No flags found for sub-band 'band_SB0' in file '/home/docs/checkouts/readthedocs.org/user_builds/pyinspecta/checkouts/stable/.venv/lib/python3.12/site-packages/sdhdf/data/tests/sdhdf_v1.9.3.hdf'!
sdhdf - WARNING: Band 'band_SB0' flags will be set to all zeros.
sdhdf - WARNING: No frequency dimension labels found in file! Attempting to match dimensions to data shape...

The SDHDF class instance contains information on the beams…

sdhdf.beams[0]

Beam(label='beam_0', filename=PosixPath('/home/docs/checkouts/readthedocs.org/user_builds/pyinspecta/checkouts/stable/.venv/lib/python3.12/site-packages/sdhdf/data/tests/sdhdf_v1.9.3.hdf'), definition={'version': '2.0', 'beam': {'attributes': {'DESCRIPTION': 'SDHDF group containing data products specific to the antenna beam', 'NAME': 'beam', 'SDHDF_CLASS': 'sdhdf_beam'}, 'metadata': {'attributes': {'DESCRIPTION': 'SDHDF group containing observation metadata', 'NAME': 'metadata', 'SDHDF_CLASS': 'sdhdf_meta'}, 'band_params': 'metadata/band_params', 'cal_band_params': 'metadata/cal_band_params'}, 'band': {'attributes': {'DESCRIPTION': 'SDHDF group containing data products specific to the frequency band', 'NAME': 'band', 'SDHDF_CLASS': 'sdhdf_band'}, 'astronomy': {'data': 'astronomy_data/data', 'weights': 'astronomy_data/data_weights', 'flags': 'astronomy_data/data_flags', 'frequency': 'astronomy_data/frequency'}, 'calibrator': {'cal_binned': 'calibrator_data/cal32_data', 'cal_on': 'calibrator_data/cal_data_on', 'cal_off': 'calibrator_data/cal_data_off', 'weights': 'calibrator_data/cal_data_weights', 'flags': 'calibrator_data/cal_data_flags', 'frequency': 'calibrator_data/cal_frequency'}, 'metadata': {'attributes': {'DESCRIPTION': 'SDHDF group containing observation metadata', 'NAME': 'metadata', 'SDHDF_CLASS': 'sdhdf_meta'}, 'obs_params': 'metadata/obs_params', 'cal_obs_params': 'metadata/cal_obs_params'}}}, 'config': {'attributes': {'DESCRIPTION': 'SDHDF group containing configuration parameters as defined at the time of the observation', 'NAME': 'config', 'SDHDF_CLASS': 'sdhdf_config'}, 'backend': 'config/backend_config', 'cal_backend': 'config/cal_backend_config'}, 'metadata': {'attributes': {'DESCRIPTION': 'SDHDF group containing observation metadata', 'NAME': 'metadata', 'SDHDF_CLASS': 'sdhdf_meta'}, 'beam_params': 'metadata/beam_params', 'history': 'metadata/history', 'primary_header': 'metadata/primary_header', 'software': 'metadata/software_versions'}}, in_memory=False, client=<Client: 'tcp://127.0.0.1:39819' processes=2 threads=2, memory=6.64 GiB>)

…and all associated metadata:

sdhdf.metadata

MetaData(filename=PosixPath('/home/docs/checkouts/readthedocs.org/user_builds/pyinspecta/checkouts/stable/.venv/lib/python3.12/site-packages/sdhdf/data/tests/sdhdf_v1.9.3.hdf'))

Let’s explore the observation metadata - for example the primary_header dataset can be displayed with:

sdhdf.metadata.primary_header

	DATE	HDR_DEFN	HDR_DEFN_VERSION	FILE_FORMAT	FILE_FORMAT_VERSION	SCHED_BLOCK_ID	CAL_MODE	INSTRUMENT	OBSERVER	OBS_TYPE	PID	RECEIVER	TELESCOPE	UTC_START	N_BEAMS
0	2021-04-08-04:57:40	SDHDF	1.9.3	HDF	5.0	25494	OFF	Medusa	kac014	ScanContinuum	P1117	UWL	Parkes	2021-04-07-18:49:04	1

The attribute keys and descriptions can be accessed with:

sdhdf.metadata.primary_header.attrs.keys()

dict_keys(['CAL_MODE', 'DATE', 'DESCRIPTION', 'FILE_FORMAT', 'FILE_FORMAT_VERSION', 'HDR_DEFN', 'HDR_DEFN_VERSION', 'INSTRUMENT', 'NAME', 'N_BEAMS', 'OBSERVER', 'OBS_TYPE', 'PID', 'RECEIVER', 'SCHED_BLOCK_ID', 'SDHDF_CLASS', 'TELESCOPE', 'UTC_START'])

sdhdf.metadata.primary_header.attrs.values()

dict_values(['Calibration mode (ON | OFF)', 'File creation date (UTC YYYY-MM-DD-hh:mm:ss)', 'General observation metadata', 'File format', 'File format version', 'File format definition', 'File format definition version', 'Backend instrument name', 'primary_header', 'Number of beams', 'Observer name', 'Observation type (TRACK | SCAN)', 'Project ID', 'Receiver name', 'Schedule block ID', 'sdhdf_table', 'Telescope name', 'Observation start (UTC YYYY-MM-DD-hh:mm:ss)'])

The attribute values, for example for the key ‘TELESCOPE’, can be accessed from the table:

sdhdf.metadata.primary_header.table["TELESCOPE"][0]

'Parkes'

The same applies for accessing the observation parameters with for example:

sdhdf.metadata.obs_params

	ELAPSED_TIME	TIME_DB	MJD	UTC	UT_DATE	AEST	RA_STR	DEC_STR	RA_DEG	DEC_DEG	...	RA_OFFSET	DEC_OFFSET	AZ_OFFSET	EL_OFFSET	AZ_DRIVE_RATE	ZE_DRIVE_RATE	HOUR_ANGLE	PARA_ANGLE	WIND_DIR	WIND_SPD
0	0.492	2021-04-07T18:49:04.49Z	59311.78408	18:49:04.49	2021-04-07	04:49:05.39	19:30:21.47	-63:42:45.01	292.5895	-63.7125	...	0.0	0.0	0.0	0.0	0.3949	0.1966	333.7163	-40.7	4.0	124.0

1 rows × 25 columns

The Beam class contains the subband data - these can be accessed in a similar way to the beams:

sdhdf.beams[0].subbands

[SubBand(label='band_SB0', filename=PosixPath('/home/docs/checkouts/readthedocs.org/user_builds/pyinspecta/checkouts/stable/.venv/lib/python3.12/site-packages/sdhdf/data/tests/sdhdf_v1.9.3.hdf'), definition={'version': '2.0', 'beam': {'attributes': {'DESCRIPTION': 'SDHDF group containing data products specific to the antenna beam', 'NAME': 'beam', 'SDHDF_CLASS': 'sdhdf_beam'}, 'metadata': {'attributes': {'DESCRIPTION': 'SDHDF group containing observation metadata', 'NAME': 'metadata', 'SDHDF_CLASS': 'sdhdf_meta'}, 'band_params': 'metadata/band_params', 'cal_band_params': 'metadata/cal_band_params'}, 'band': {'attributes': {'DESCRIPTION': 'SDHDF group containing data products specific to the frequency band', 'NAME': 'band', 'SDHDF_CLASS': 'sdhdf_band'}, 'astronomy': {'data': 'astronomy_data/data', 'weights': 'astronomy_data/data_weights', 'flags': 'astronomy_data/data_flags', 'frequency': 'astronomy_data/frequency'}, 'calibrator': {'cal_binned': 'calibrator_data/cal32_data', 'cal_on': 'calibrator_data/cal_data_on', 'cal_off': 'calibrator_data/cal_data_off', 'weights': 'calibrator_data/cal_data_weights', 'flags': 'calibrator_data/cal_data_flags', 'frequency': 'calibrator_data/cal_frequency'}, 'metadata': {'attributes': {'DESCRIPTION': 'SDHDF group containing observation metadata', 'NAME': 'metadata', 'SDHDF_CLASS': 'sdhdf_meta'}, 'obs_params': 'metadata/obs_params', 'cal_obs_params': 'metadata/cal_obs_params'}}}, 'config': {'attributes': {'DESCRIPTION': 'SDHDF group containing configuration parameters as defined at the time of the observation', 'NAME': 'config', 'SDHDF_CLASS': 'sdhdf_config'}, 'backend': 'config/backend_config', 'cal_backend': 'config/cal_backend_config'}, 'metadata': {'attributes': {'DESCRIPTION': 'SDHDF group containing observation metadata', 'NAME': 'metadata', 'SDHDF_CLASS': 'sdhdf_meta'}, 'beam_params': 'metadata/beam_params', 'history': 'metadata/history', 'primary_header': 'metadata/primary_header', 'software': 'metadata/software_versions'}}, beam_label='beam_0', in_memory=False, client=<Client: 'tcp://127.0.0.1:39819' processes=2 threads=2, memory=6.64 GiB>)]

The data are stored as either an xarray.Dataset or pandas.DataFrame depending on the data type:

sdhdf.beams[0].subbands[0].astronomy_dataset

<xarray.Dataset> Size: 10kB
Dimensions:        (time: 1, frequency: 256, polarization: 4, bin: 1, meta: 25)
Coordinates: (12/28)
    ELAPSED_TIME   (time) float64 8B 0.492
    TIME_DB        (time) object 8B '2021-04-07T18:49:04.49Z'
    MJD            (time) float64 8B 5.931e+04
    UTC            (time) object 8B '18:49:04.49'
    UT_DATE        (time) object 8B '2021-04-07'
    AEST           (time) object 8B '04:49:05.39'
    ...             ...
    PARA_ANGLE     (time) float64 8B -40.7
    WIND_DIR       (time) float64 8B 4.0
    WIND_SPD       (time) float64 8B 124.0
  * frequency      (frequency) float32 1kB 719.6 719.6 719.6 ... 719.7 719.7
  * time           (time) int64 8B 0
  * meta           (meta) object 200B 'ELAPSED_TIME' 'TIME_DB' ... 'WIND_SPD'
Dimensions without coordinates: polarization, bin
Data variables:
    data           (time, polarization, frequency, bin) float32 4kB dask.array<chunksize=(1, 4, 256, 1), meta=np.ndarray>
    flag           (polarization, frequency) float32 4kB dask.array<chunksize=(4, 256), meta=np.ndarray>
    metadata       (time, meta) object 200B 0.49200000000000005 ... 124.0

xarray.Dataset

• Dimensions:
  • time: 1
  • frequency: 256
  • polarization: 4
  • bin: 1
  • meta: 25
• Coordinates: (28)
  • ELAPSED_TIME
    (time)
    float64
    0.492

    array([0.492])

  • TIME_DB
    (time)
    object
    '2021-04-07T18:49:04.49Z'

    array(['2021-04-07T18:49:04.49Z'], dtype=object)

  • MJD
    (time)
    float64
    5.931e+04

    array([59311.78408])

  • UTC
    (time)
    object
    '18:49:04.49'

    array(['18:49:04.49'], dtype=object)

  • UT_DATE
    (time)
    object
    '2021-04-07'

    array(['2021-04-07'], dtype=object)

  • AEST
    (time)
    object
    '04:49:05.39'

    array(['04:49:05.39'], dtype=object)

  • RA_STR
    (time)
    object
    '19:30:21.47'

    array(['19:30:21.47'], dtype=object)

  • DEC_STR
    (time)
    object
    '-63:42:45.01'

    array(['-63:42:45.01'], dtype=object)

  • RA_DEG
    (time)
    float64
    292.6

    array([292.5895])

  • DEC_DEG
    (time)
    float64
    -63.71

    array([-63.7125])

  • GL
    (time)
    float64
    332.7

    array([332.679])

  • GB
    (time)
    float64
    -28.39

    array([-28.3879])

  • AZ
    (time)
    float64
    159.8

    array([159.827])

  • ZE
    (time)
    float64
    34.74

    array([34.7411])

  • EL
    (time)
    float64
    55.26

    array([55.2589])

  • RA_OFFSET
    (time)
    float64
    0.0

    array([0.])

  • DEC_OFFSET
    (time)
    float64
    0.0

    array([0.])

  • AZ_OFFSET
    (time)
    float64
    0.0

    array([0.])

  • EL_OFFSET
    (time)
    float64
    0.0

    array([0.])

  • AZ_DRIVE_RATE
    (time)
    float64
    0.3949

    array([0.3949])

  • ZE_DRIVE_RATE
    (time)
    float64
    0.1966

    array([0.1966])

  • HOUR_ANGLE
    (time)
    float64
    333.7

    array([333.7163])

  • PARA_ANGLE
    (time)
    float64
    -40.7

    array([-40.7])

  • WIND_DIR
    (time)
    float64
    4.0

    array([4.])

  • WIND_SPD
    (time)
    float64
    124.0

    array([124.])

  • frequency
    (frequency)
    float32
    719.6 719.6 719.6 ... 719.7 719.7

    units :

    MHz

    array([719.62506, 719.62555, 719.62604, ..., 719.7486 , 719.7491 , 719.7496 ],
          shape=(256,), dtype=float32)

  • time
    (time)
    int64
    0

    array([0])

  • meta
    (meta)
    object
    'ELAPSED_TIME' ... 'WIND_SPD'

    array(['ELAPSED_TIME', 'TIME_DB', 'MJD', 'UTC', 'UT_DATE', 'AEST', 'RA_STR',
           'DEC_STR', 'RA_DEG', 'DEC_DEG', 'GL', 'GB', 'AZ', 'ZE', 'EL',
           'RA_OFFSET', 'DEC_OFFSET', 'AZ_OFFSET', 'EL_OFFSET', 'AZ_DRIVE_RATE',
           'ZE_DRIVE_RATE', 'HOUR_ANGLE', 'PARA_ANGLE', 'WIND_DIR', 'WIND_SPD'],
          dtype=object)

• Data variables: (3)
  • data
    (time, polarization, frequency, bin)
    float32
    dask.array<chunksize=(1, 4, 256, 1), meta=np.ndarray>

    DESCRIPTION :

    SDHDF astronomy data

    DIMENSION_LABELS :

    ['time' 'beam' 'polarization' 'frequency' 'bin']

    DIMENSION_LIST :

    [array([], dtype=object) array([], dtype=object) array([], dtype=object) array([<HDF5 object reference>], dtype=object) array([], dtype=object)]

    NAME :

    data

    SDHDF_CLASS :

    sdhdf_waterfall

    UNIT :

    counts

    units :

    counts

    Array Chunk Bytes 4.00 kiB 4.00 kiB Shape (1, 4, 256, 1) (1, 4, 256, 1) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

  • flag
    (polarization, frequency)
    float32
    dask.array<chunksize=(4, 256), meta=np.ndarray>

    Array Chunk Bytes 4.00 kiB 4.00 kiB Shape (4, 256) (4, 256) Dask graph 1 chunks in 2 graph layers Data type float32 numpy.ndarray

  • metadata
    (time, meta)
    object
    0.49200000000000005 ... 124.0

    array([[0.49200000000000005, '2021-04-07T18:49:04.49Z', 59311.78408,
            '18:49:04.49', '2021-04-07', '04:49:05.39', '19:30:21.47',
            '-63:42:45.01', 292.5895, -63.7125, 332.679, -28.3879, 159.827,
            34.7411, 55.2589, 0.0, 0.0, 0.0, 0.0, 0.3949, 0.1966, 333.7163,
            -40.7, 4.0, 124.0]], dtype=object)

• Indexes: (3)
  • frequency
    PandasIndex

    PandasIndex(Index([719.6250610351562, 719.6255493164062, 719.6260375976562,
           719.6265258789062, 719.6270141601562, 719.6275024414062,
           719.6279907226562, 719.6284790039062, 719.6289672851562,
           719.6294555664062,
           ...
           719.7451782226562, 719.7456665039062, 719.7461547851562,
           719.7466430664062, 719.7471313476562, 719.7476196289062,
           719.7481079101562, 719.7485961914062, 719.7490844726562,
           719.7495727539062],
          dtype='float32', name='frequency', length=256))

  • time
    PandasIndex

    PandasIndex(RangeIndex(start=0, stop=1, step=1, name='time'))

  • meta
    PandasIndex

    PandasIndex(Index(['ELAPSED_TIME', 'TIME_DB', 'MJD', 'UTC', 'UT_DATE', 'AEST', 'RA_STR',
           'DEC_STR', 'RA_DEG', 'DEC_DEG', 'GL', 'GB', 'AZ', 'ZE', 'EL',
           'RA_OFFSET', 'DEC_OFFSET', 'AZ_OFFSET', 'EL_OFFSET', 'AZ_DRIVE_RATE',
           'ZE_DRIVE_RATE', 'HOUR_ANGLE', 'PARA_ANGLE', 'WIND_DIR', 'WIND_SPD'],
          dtype='object', name='meta'))

• Attributes: (0)

sdhdf.metadata.frequency.table

	0	1	2	3	4	5	6
0	CLASS	DESCRIPTION	FRAME	NAME	REFERENCE_LIST	SDHDF_CLASS	UNIT
1	b'DIMENSION_SCALE'	SDHDF frequency data (default reference frame:...	topocentric	frequency	[[<HDF5 object reference>, 3]]	sdhdf_frequency	MHz

For example, using the xarray.DataArray we have a lot of power to visualise and manipulate the data - see the xarray documentation for more information.

I’ve also implemented some commonly-used commands on methods inside the dataclasses. For example, we can make a waterfall plot, plot a spectrum, and inspect the metadata. This is all done with xarray or pandas under the hood - so much more complex investigations are possible using those tools.

Here’s a waterfall plot, which can be called from the SDHDF and Beam classes, but is really calling the base method on the Subband class:

sdhdf.plot_waterfall(
    beam=0,
    subband=0,
    polarization=0,
    flag=False,
    norm=plt.cm.colors.LogNorm(vmin=1e0),
    y="ELAPSED_TIME",
)

sdhdf - WARNING: Cannot create a waterfall plot with a single integration!

Note that this is just a wrapper around the methods in xarray. You can use these directly for powerful visualisation and processing functionality, for example:

if len(sdhdf.beams[0].subbands[0].astronomy_dataset.data["time"]) != 1:
    sdhdf.beams[0].subbands[0].astronomy_dataset.isel(polarization=0).data.plot(
        norm=plt.cm.colors.LogNorm(vmin=1e0, vmax=1e4), x="frequency", y="ELAPSED_TIME"
    )
else:
    logger.warning("Cannot create a waterfall plot with a single integration!")

sdhdf - WARNING: Cannot create a waterfall plot with a single integration!

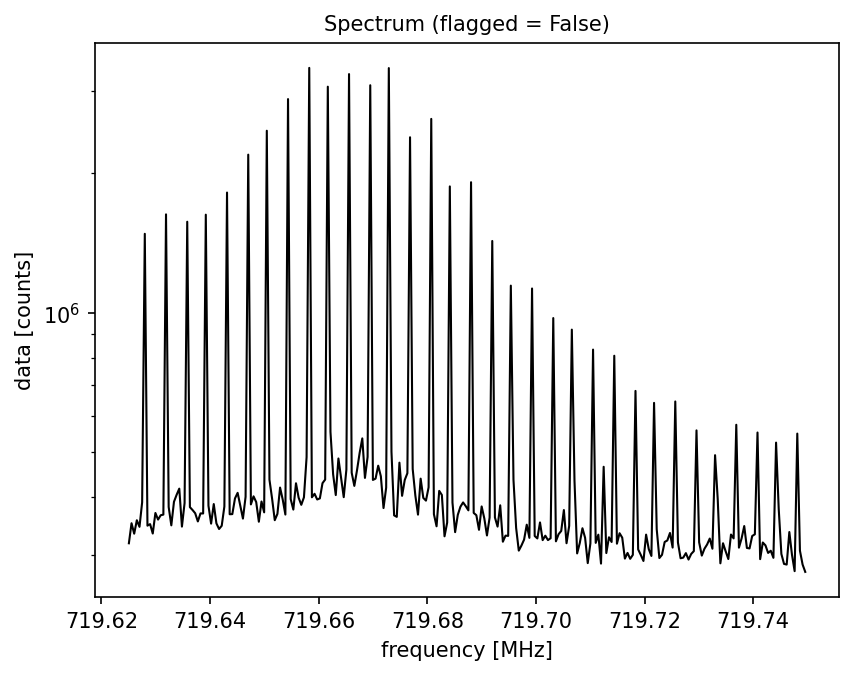

We can also plot the spectrum, for example:

ax = sdhdf.plot_spectrum(
    beam=0, subband=0, x="frequency", flag=False, color="black", linewidth=1
)
ax.set_yscale("log")

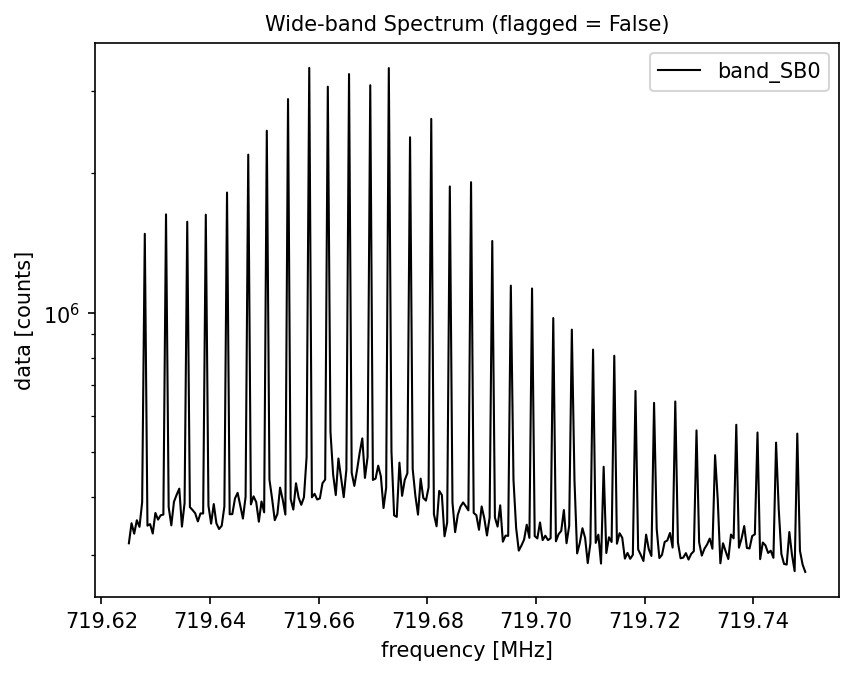

A wide-band plot can be called from the SDHDF object, but it also really just calling down to the Beam class:

ax = sdhdf.plot_wide(
    beam=0, polarization=0, x="frequency", flag=False, color="black", linewidth=1
)
ax.set_yscale("log")

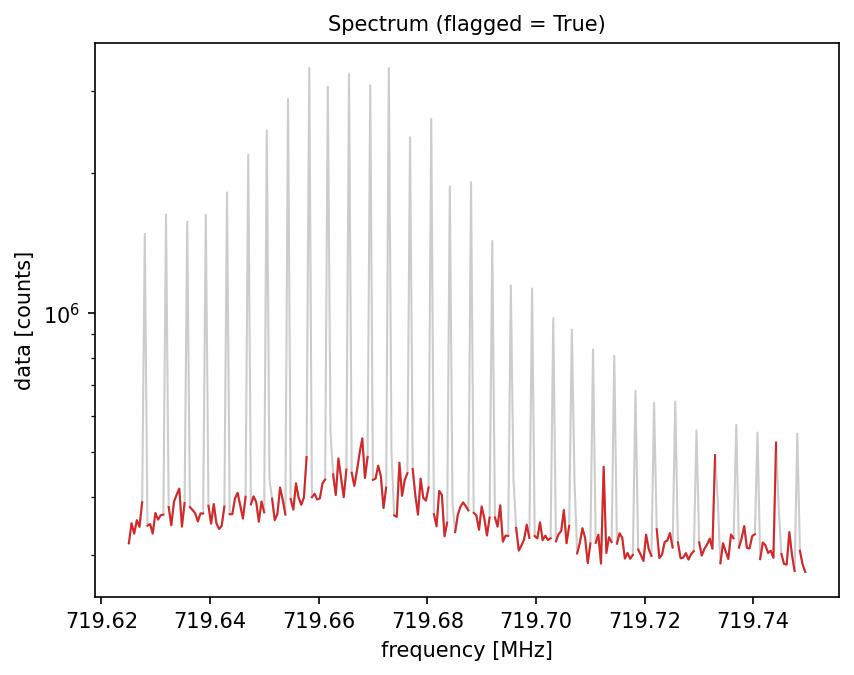

Now let’s try and apply the RFI flagging routine:

sdhdf.auto_flag_rfi(sigma=5, n_windows=1, flag_persistent=False)

fig, ax = plt.subplots()
_ = sdhdf.plot_spectrum(
    beam=0,
    subband=0,
    polarization=0,
    x="frequency",
    flag=False,
    color="black",
    linewidth=1,
    alpha=0.2,
    ax=ax,
)
ax.set_yscale("log")

_ = sdhdf.plot_spectrum(
    beam=0,
    subband=0,
    polarization=0,
    x="frequency",
    flag=True,
    color="tab:red",
    linewidth=1,
    ax=ax,
)
ax.set_yscale("log")
